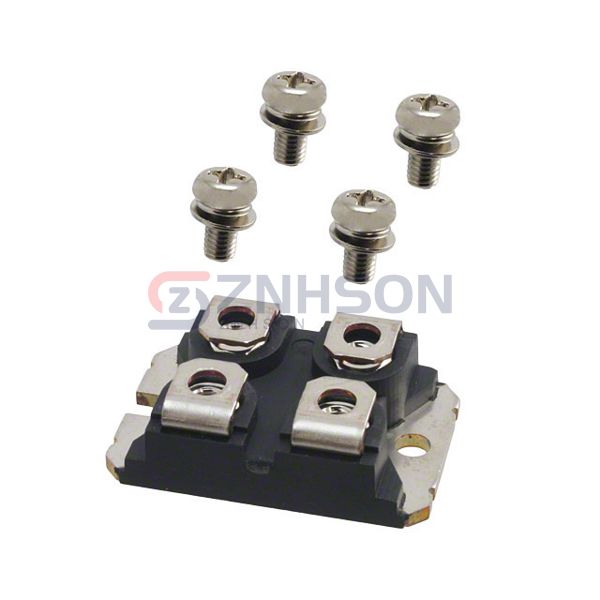

APT2X61D100J
Microchip Technology
Microchip Technology
DIODE MODULE 1KV 55A ISOTOP
$28.70
Available to order
Reference Price (USD)
1+
$26.95000
10+
$24.92700
25+
$22.90600
100+
$21.28920
250+
$19.53760
500+
$18.59440
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT2X61D100J from Microchip Technology is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Microchip Technology's APT2X61D100J for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 1000 V
- Current - Average Rectified (Io) (per Diode): 55A
- Voltage - Forward (Vf) (Max) @ If: 2.5 V @ 60 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 280 ns
- Current - Reverse Leakage @ Vr: 250 µA @ 1000 V
- Operating Temperature - Junction: -
- Mounting Type: Chassis Mount
- Package / Case: SOT-227-4, miniBLOC
- Supplier Device Package: ISOTOP®
