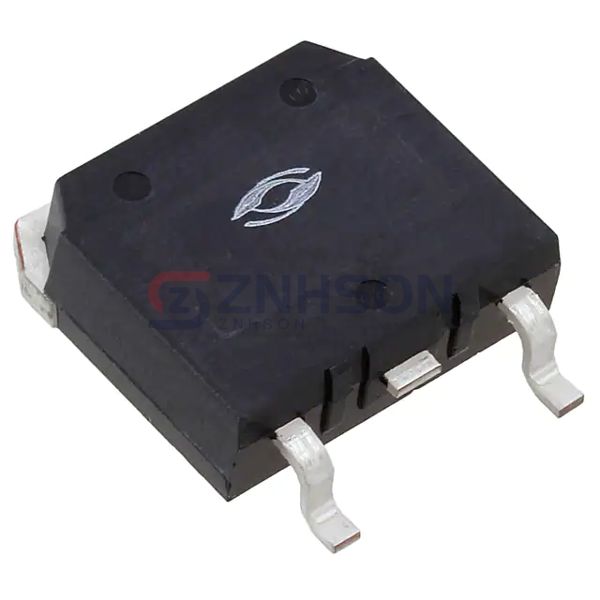

APT40SM120S
Microsemi Corporation
Microsemi Corporation
SICFET N-CH 1200V 41A D3PAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the APT40SM120S by Microsemi Corporation, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the APT40SM120S is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1200 V
- Current - Continuous Drain (Id) @ 25°C: 41A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 100mOhm @ 20A, 20V
- Vgs(th) (Max) @ Id: 3V @ 1mA (Typ)
- Gate Charge (Qg) (Max) @ Vgs: 130 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 2560 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 273W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D3Pak
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
