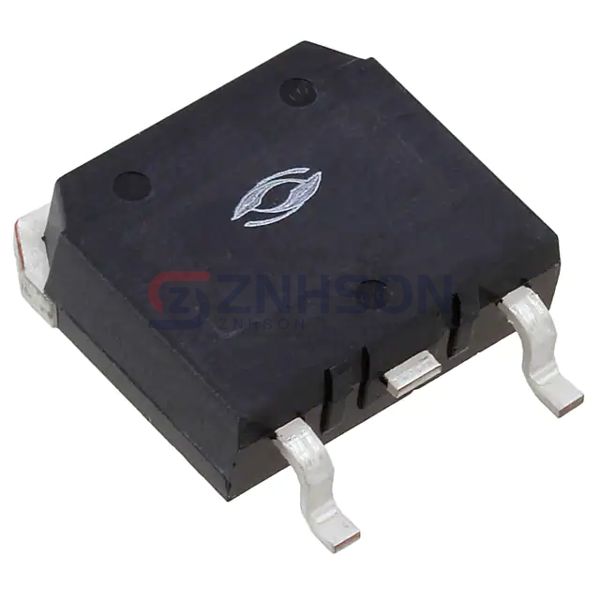

APT5SM170S
Microsemi Corporation
Microsemi Corporation
SICFET N-CH 1700V 4.6A D3PAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT5SM170S from Microsemi Corporation sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Microsemi Corporation's APT5SM170S for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 1700 V
- Current - Continuous Drain (Id) @ 25°C: 4.6A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 1.2Ohm @ 2A, 20V
- Vgs(th) (Max) @ Id: 3.2V @ 500µA
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: 325 pF @ 1000 V
- FET Feature: -
- Power Dissipation (Max): 52W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D3PAK
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
