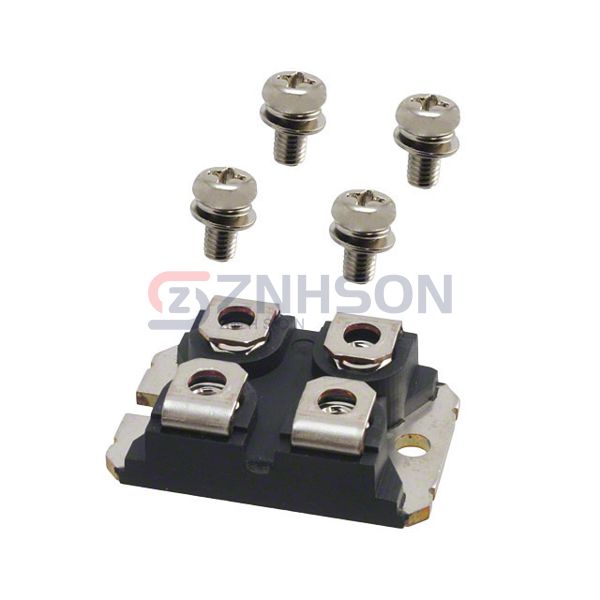

APT70SM70J
Microsemi Corporation
Microsemi Corporation
SICFET N-CH 700V 49A SOT227
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your designs with the APT70SM70J by Microsemi Corporation, a top-tier single MOSFET in the Discrete Semiconductor Products range. This component shines in high-power applications such as server farms, electric vehicle charging stations, and smart grid technology. With its low conduction losses and high reliability, the APT70SM70J is the ideal choice for engineers working with Transistors - FETs, MOSFETs - Single components.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: SiCFET (Silicon Carbide)
- Drain to Source Voltage (Vdss): 700 V
- Current - Continuous Drain (Id) @ 25°C: 49A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 20V
- Rds On (Max) @ Id, Vgs: 70mOhm @ 32.5A, 20V
- Vgs(th) (Max) @ Id: 2.5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 125 nC @ 20 V
- Vgs (Max): +25V, -10V
- Input Capacitance (Ciss) (Max) @ Vds: -
- FET Feature: -
- Power Dissipation (Max): 165W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SOT-227
- Package / Case: SOT-227-4, miniBLOC
Related Products
Infineon Technologies
IPI030N10N3GHKSA1
Nexperia USA Inc.
BUK9529-100B,127
Infineon Technologies
BSP320SL6433HTMA1
STMicroelectronics
STB50NE10T4
Vishay Siliconix
SQ3418EEV-T1-GE3
onsemi
FDU3706
onsemi
HUFA75345S3ST
onsemi

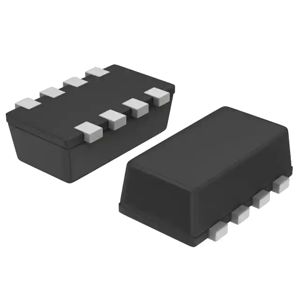

NTHS5441PT1G
IXYS

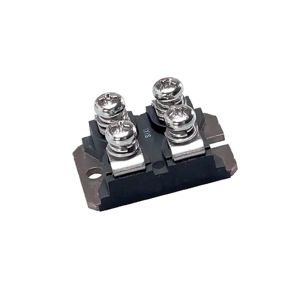

IXFN73N30Q
