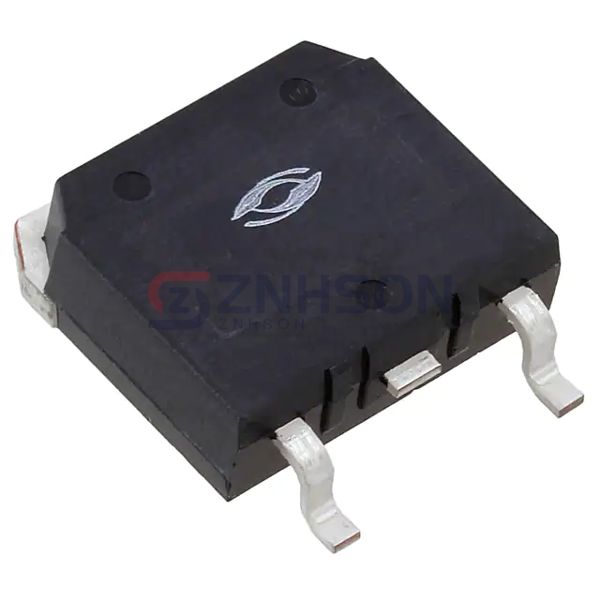

APT9F100S
Microsemi Corporation
Microsemi Corporation
MOSFET N-CH 1000V 9A D3PAK
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT9F100S from Microsemi Corporation redefines excellence in the Transistors - FETs, MOSFETs - Single classification. This Discrete Semiconductor Product boasts advanced thermal management, high-frequency operation, and exceptional durability. Whether you're designing medical equipment, aerospace systems, or IoT devices, the APT9F100S offers the precision and reliability you need. Trust Microsemi Corporation to power your next breakthrough innovation.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1000 V
- Current - Continuous Drain (Id) @ 25°C: 9A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.6Ohm @ 5A, 10V
- Vgs(th) (Max) @ Id: 5V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 80 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 2606 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 337W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: D3Pak
- Package / Case: TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
