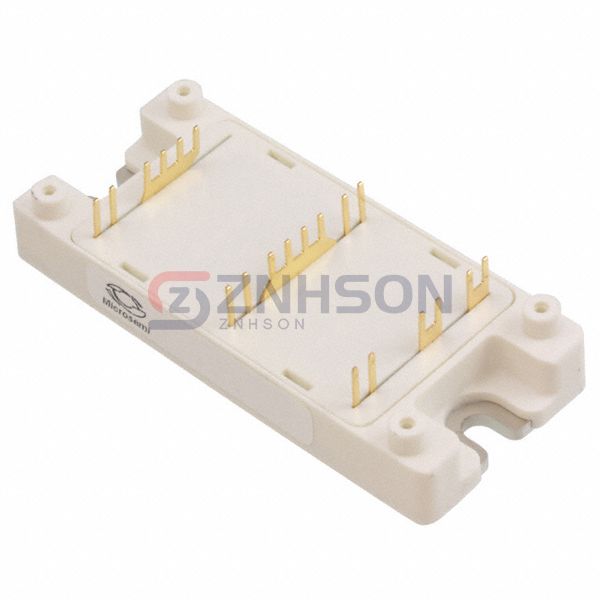

APTGF100A120TG
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 135A 568W SP4
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with Microchip Technology's APTGF100A120TG, a high-efficiency IGBT module in the Discrete Semiconductor Products range. This transistor module incorporates seventh-generation micro-pattern trench technology for minimal conduction losses. Special features include: integrated gate driver compatibility, SCADA-ready monitoring interfaces, and corrosion-resistant terminals. Application areas cover industrial cranes, subway power networks, and large-scale battery storage systems. The APTGF100A120TG is particularly effective in high-ambient-temperature environments like steel mill drives. Microchip Technology brings decades of semiconductor expertise to every APTGF100A120TG module.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 135 A
- Power - Max: 568 W
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 100A
- Current - Collector Cutoff (Max): 350 µA
- Input Capacitance (Cies) @ Vce: 6.9 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -
- Mounting Type: Chassis Mount
- Package / Case: SP4
- Supplier Device Package: SP4
Related Products
Vishay General Semiconductor - Diodes Division
VS-CPV362M4UPBF
SemiQ
GSID100A120T2C1
Powerex Inc.
CM300DY-24A
Microsemi Corporation

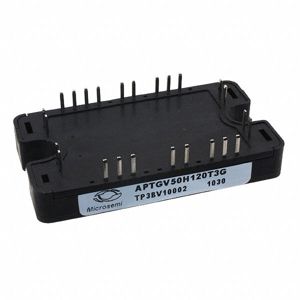

APTGV50H120T3G
Vishay General Semiconductor - Diodes Division
VS-GT100DA60U
Powerex Inc.

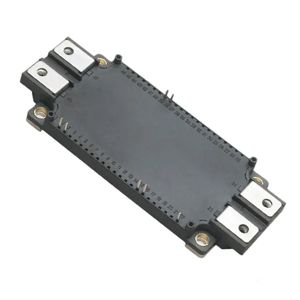

CM450DX-24S
Littelfuse Inc.

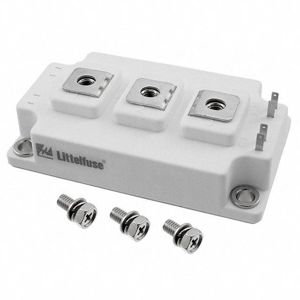

MG06400D-BN1MM
Powerex Inc.

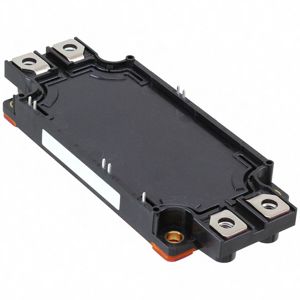

CM600DX-24S1
Powerex Inc.

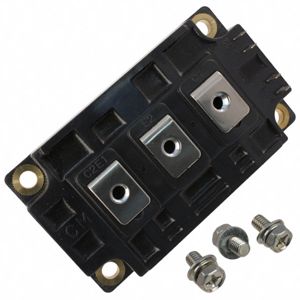

CM400DY-12H
