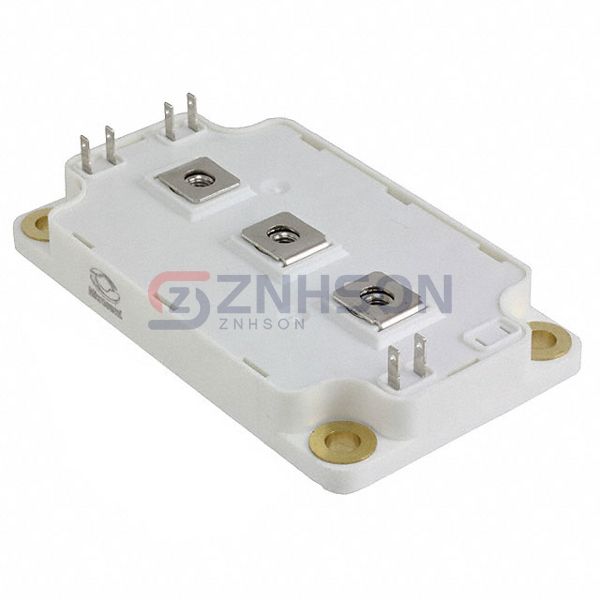

APTGLQ400A120T6G
Microchip Technology
Microchip Technology
IGBT MODULE 1200V 700A 1900W SP6
$382.34
Available to order
Reference Price (USD)
100+
$191.28880
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTGLQ400A120T6G from Microchip Technology exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the APTGLQ400A120T6G in megawatt-level wind turbine converters. With Microchip Technology's proven track record, the APTGLQ400A120T6G represents the future of power semiconductor modules.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Half Bridge
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 700 A
- Power - Max: 1900 W
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 400A
- Current - Collector Cutoff (Max): 200 µA
- Input Capacitance (Cies) @ Vce: 24.6 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: SP6
- Supplier Device Package: SP6
