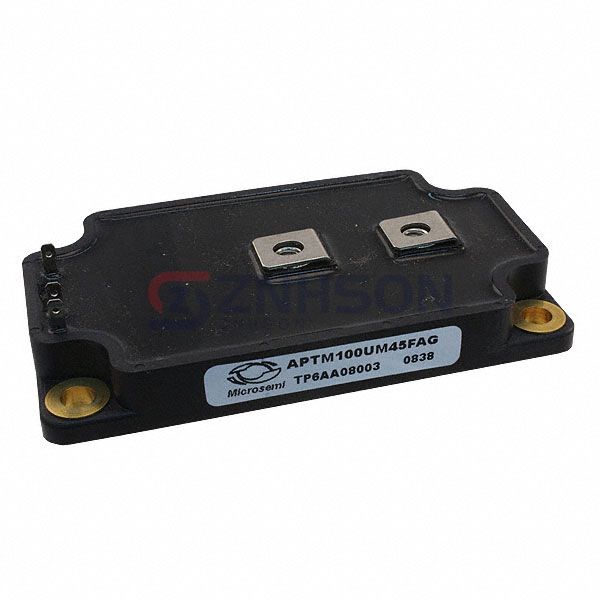

APTM100UM45FAG
Microchip Technology
Microchip Technology
MOSFET N-CH 1000V 215A SP6
$461.70
Available to order
Reference Price (USD)
100+
$285.76630
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTM100UM45FAG by Microchip Technology is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the APTM100UM45FAG is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 1000 V
- Current - Continuous Drain (Id) @ 25°C: 215A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 52mOhm @ 107.5A, 10V
- Vgs(th) (Max) @ Id: 5V @ 30mA
- Gate Charge (Qg) (Max) @ Vgs: 1602 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 42700 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 5000W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SP6
- Package / Case: SP6
