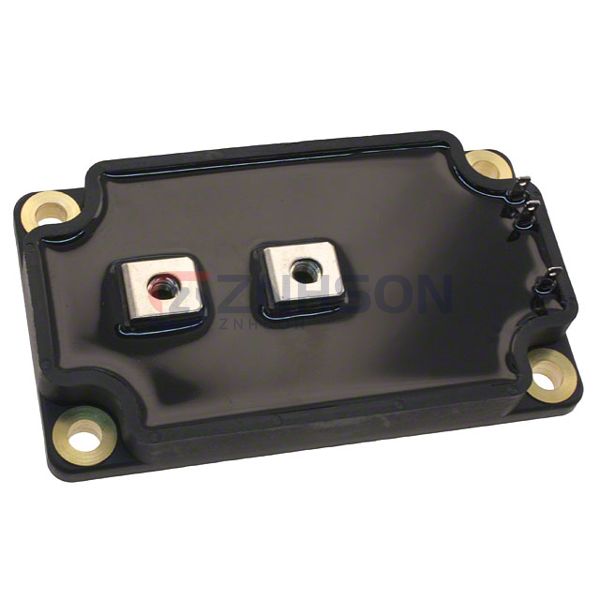

APTM10UM01FAG
Microchip Technology
Microchip Technology
MOSFET N-CH 100V 860A SP6
$362.70
Available to order
Reference Price (USD)
1+
$191.49000
10+
$182.24200
25+
$175.63920
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the APTM10UM01FAG by Microchip Technology, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The APTM10UM01FAG stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Microchip Technology.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100 V
- Current - Continuous Drain (Id) @ 25°C: 860A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 1.6mOhm @ 275A, 10V
- Vgs(th) (Max) @ Id: 4V @ 12mA
- Gate Charge (Qg) (Max) @ Vgs: 2100 nC @ 10 V
- Vgs (Max): ±30V
- Input Capacitance (Ciss) (Max) @ Vds: 60000 pF @ 25 V
- FET Feature: -
- Power Dissipation (Max): 2500W (Tc)
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Supplier Device Package: SP6
- Package / Case: SP6
