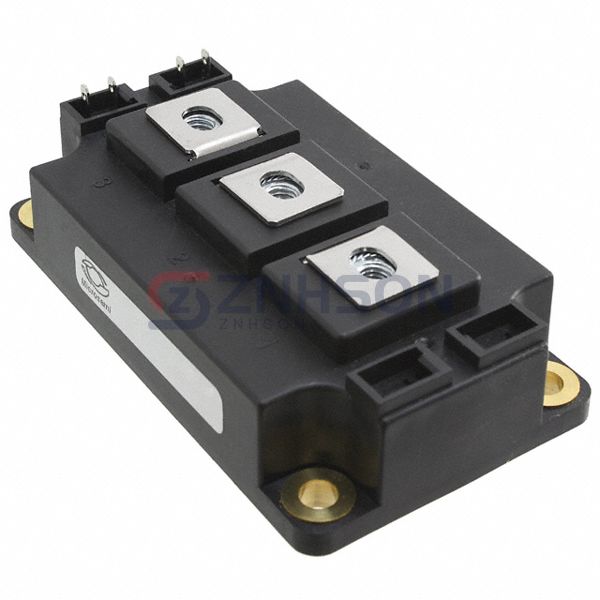

APTMC120AM16CD3AG
Microchip Technology
Microchip Technology
MOSFET 2N-CH 1200V 131A D3
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APTMC120AM16CD3AG by Microchip Technology is a superior addition to the Discrete Semiconductor Products inventory. As a Transistors - FETs, MOSFETs - Arrays device, it features low threshold voltage and high switching speed, ideal for energy-efficient designs. Suitable for applications like smart home devices, power tools, and HVAC systems, the APTMC120AM16CD3AG ensures consistent and dependable performance. Microchip Technology's commitment to quality ensures this MOSFET array exceeds expectations.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Half Bridge)
- FET Feature: Silicon Carbide (SiC)
- Drain to Source Voltage (Vdss): 1200V (1.2kV)
- Current - Continuous Drain (Id) @ 25°C: 131A (Tc)
- Rds On (Max) @ Id, Vgs: 20mOhm @ 100A, 20V
- Vgs(th) (Max) @ Id: 2.2V @ 5mA (Typ)
- Gate Charge (Qg) (Max) @ Vgs: 246nC @ 20V
- Input Capacitance (Ciss) (Max) @ Vds: 4750pF @ 1000V
- Power - Max: 625W
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Chassis Mount
- Package / Case: D-3 Module
- Supplier Device Package: D3
