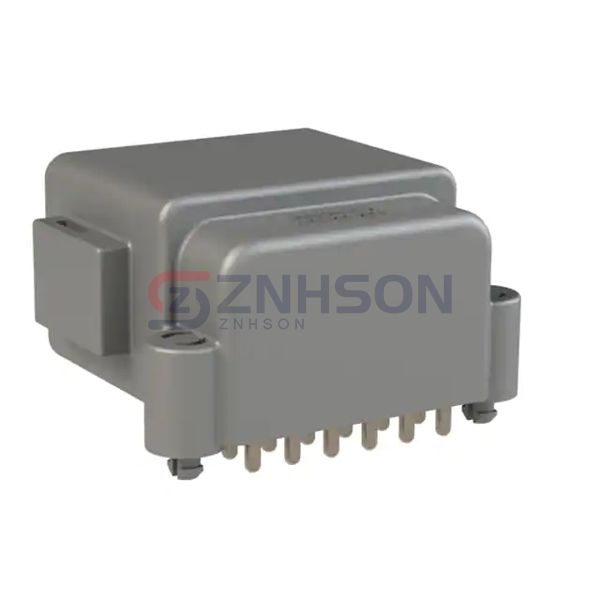

ATF13-12PA-BM03
Amphenol Sine Systems Corp
Amphenol Sine Systems Corp
BOARD MOUNT HEADER, RIGHT ANGLE,
$14.07
Available to order
Reference Price (USD)
1+
$14.07000
500+
$13.9293
1000+
$13.7886
1500+
$13.6479
2000+
$13.5072
2500+
$13.3665
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ATF13-12PA-BM03 male pin header by Amphenol Sine Systems Corp provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Amphenol Sine Systems Corp guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.174" (4.42mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.874" (22.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Lock
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: -
- Insulation Color: Gray
- Current Rating (Amps): 13A
- Voltage Rating: 250VDC
