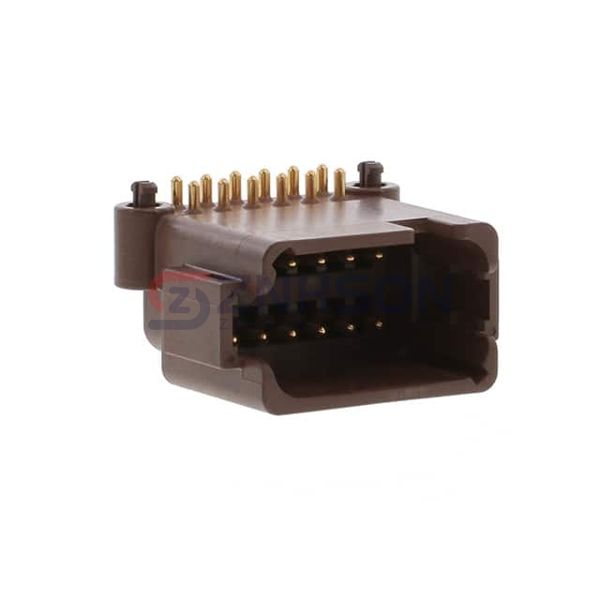

ATF13-12PD-BM01
Amphenol Sine Systems Corp
Amphenol Sine Systems Corp
BOARD MOUNT HEADER, RIGHT ANGLE,
$21.65
Available to order
Reference Price (USD)
1+
$21.65000
500+
$21.4335
1000+
$21.217
1500+
$21.0005
2000+
$20.784
2500+
$20.5675
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ATF13-12PD-BM01 by Amphenol Sine Systems Corp is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the ATF13-12PD-BM01 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Amphenol Sine Systems Corp ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.174" (4.42mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.874" (22.20mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Lock
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: IP67 - Dust Tight, Waterproof
- Material Flammability Rating: -
- Insulation Color: Brown
- Current Rating (Amps): 13A
- Voltage Rating: 250VDC
