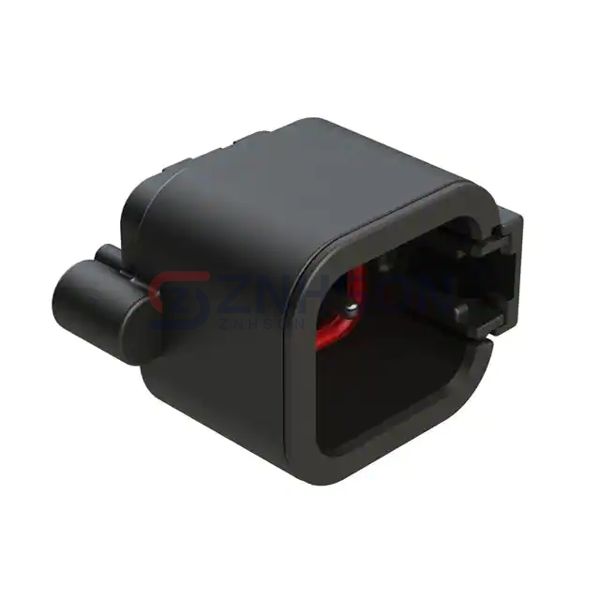

ATP04-6P-BM13
Amphenol Sine Systems Corp
Amphenol Sine Systems Corp
6 POSITION, STRAIGHT PCB RECEPTA
$9.68
Available to order
Reference Price (USD)
1+
$9.68000
500+
$9.5832
1000+
$9.4864
1500+
$9.3896
2000+
$9.2928
2500+
$9.196
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the ATP04-6P-BM13 rectangular connector header from Amphenol Sine Systems Corp for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Amphenol Sine Systems Corp is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.264" (6.71mm)
- Number of Positions: 6
- Number of Rows: 3
- Row Spacing - Mating: 0.400" (10.16mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: 0.146" (3.70mm)
- Overall Contact Length: -
- Insulation Height: 1.126" (28.60mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide, Sealed
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 25A
- Voltage Rating: -
