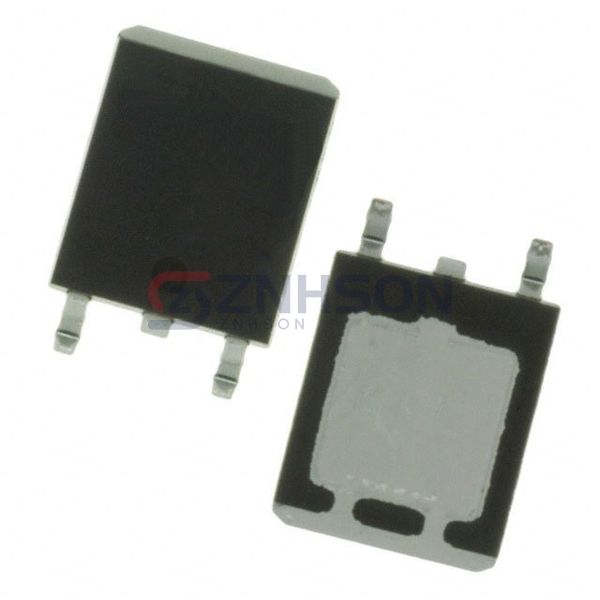

ATP103-TL-H
onsemi
onsemi
MOSFET P-CH 30V 55A ATPAK
$0.00
Available to order
Reference Price (USD)
3,000+
$0.56164
6,000+
$0.53356
15,000+
$0.51350
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the ATP103-TL-H by onsemi, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The ATP103-TL-H stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose onsemi.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 55A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 13mOhm @ 28A, 10V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 47 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 2430 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 50W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ATPAK
- Package / Case: ATPAK (2 leads+tab)
