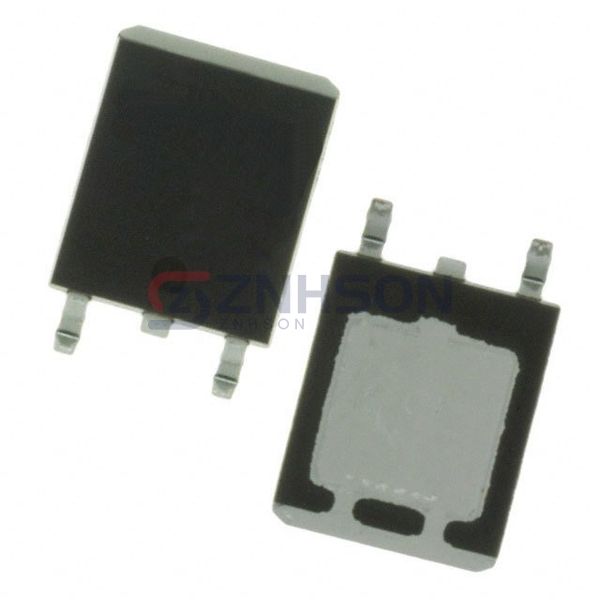

ATP106-TL-H
onsemi
onsemi
MOSFET P-CH 40V 30A ATPAK
$0.00
Available to order
Reference Price (USD)
3,000+
$0.42233
6,000+
$0.40238
15,000+
$0.38813
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ATP106-TL-H from onsemi sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to onsemi's ATP106-TL-H for their critical applications.
Specifications
- Product Status: Obsolete
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 30A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 25mOhm @ 15A, 10V
- Vgs(th) (Max) @ Id: -
- Gate Charge (Qg) (Max) @ Vgs: 29 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 1380 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 40W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: ATPAK
- Package / Case: ATPAK (2 leads+tab)
