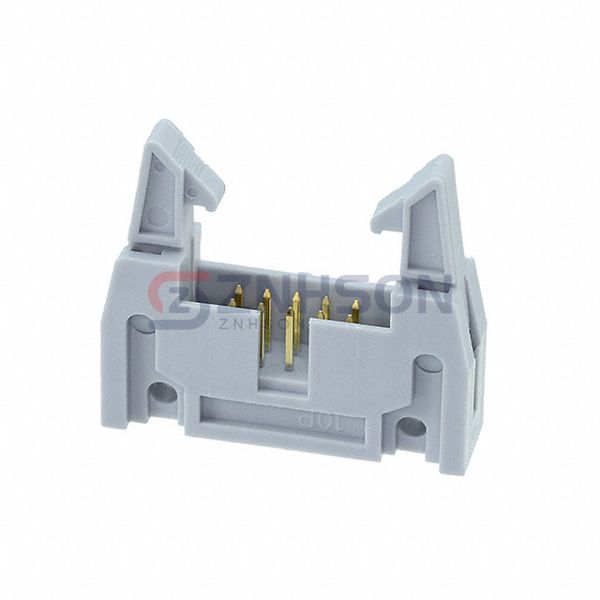

AWH 10A-0232-T
Assmann WSW Components
Assmann WSW Components
CONN HEADER R/A 10POS 2.54MM
$1.51
Available to order
Reference Price (USD)
1+
$1.50000
10+
$1.35700
156+
$1.16340
624+
$0.96950
1,092+
$0.83100
5,148+
$0.73682
10,140+
$0.72020
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AWH 10A-0232-T by Assmann WSW Components is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the AWH 10A-0232-T supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Assmann WSW Components ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: -
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.327" (8.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Molex
26-60-4120
HARTING
09185145903
Sullins Connector Solutions

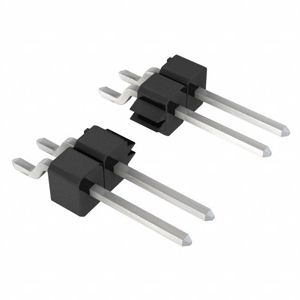

GEC14SGSN-M89
Samtec Inc.

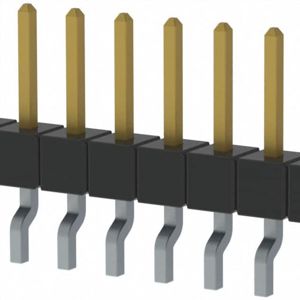

MMT-122-02-S-SH-P
Samtec Inc.

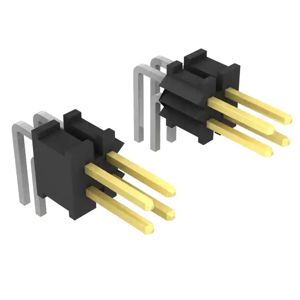

FTSH-111-01-F-D-RA
Samtec Inc.

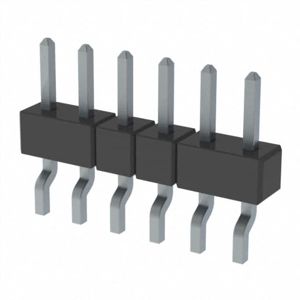

MMT-106-01-T-SH-TR
Mill-Max Manufacturing Corp.
850-90-050-30-002000
Samtec Inc.

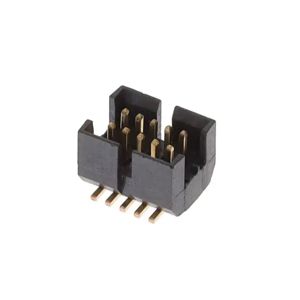

FTE-105-01-G-DV-ES-TR
Sullins Connector Solutions

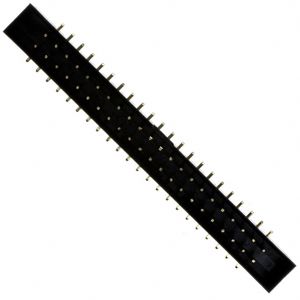

SBH21-NBPN-D22-SM-BK
