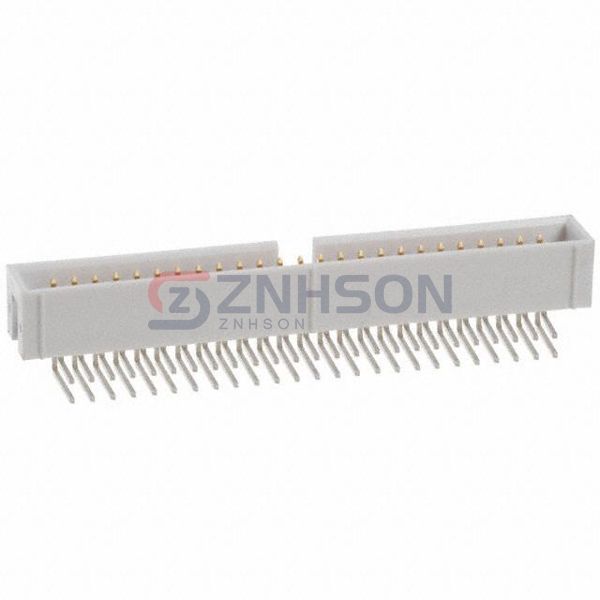

AWHW 50A-0202-T
Assmann WSW Components
Assmann WSW Components
CONN HEADER R/A 50POS 2.54MM
$1.21
Available to order
Reference Price (USD)
1+
$2.03000
60+
$1.65000
120+
$1.57500
540+
$1.31250
1,020+
$1.12500
5,040+
$0.99750
10,020+
$0.97500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the AWHW 50A-0202-T rectangular connector header from Assmann WSW Components. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the AWHW 50A-0202-T is perfect for automotive, industrial, and consumer electronics. Assmann WSW Components ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.224" (5.70mm)
- Contact Length - Post: 0.124" (3.15mm)
- Overall Contact Length: -
- Insulation Height: 0.352" (8.95mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 3A
- Voltage Rating: -
