AWSP40-24
Triad Magnetics
Triad Magnetics

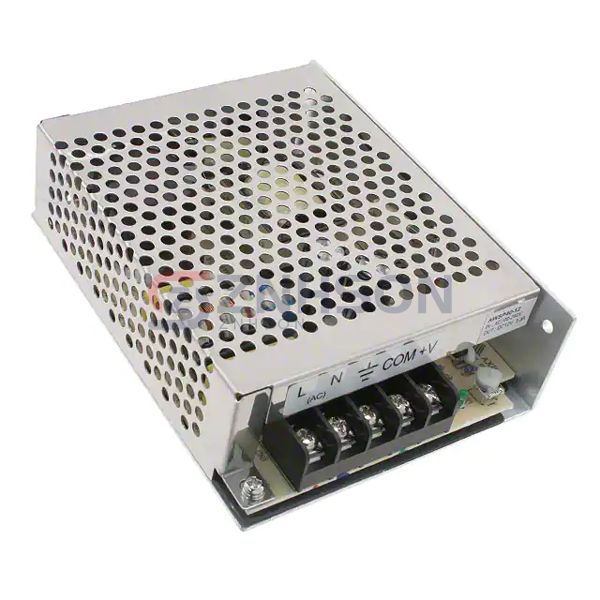

AC/DC CONVERTER 24V 40W
$33.74
Available to order
Reference Price (USD)
1+
$28.11000
5+
$27.28000
10+
$26.45400
25+
$25.62720
50+
$24.80060
100+
$23.97390
250+
$23.14720
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The AWSP40-24 AC DC Converters - Power Supplies from Triad Magnetics are the perfect choice for demanding power conversion needs. These units are built to withstand harsh environments and deliver uninterrupted power with high efficiency. Featuring a fanless design for silent operation and a wide operating temperature range, the AWSP40-24 is ideal for applications in healthcare, transportation, and renewable energy systems. With certifications from leading regulatory bodies, Triad Magnetics ensures compliance and safety. Experience superior power management with the AWSP40-24 series.
Specifications
- Product Status: Active
- Type: Enclosed
- Number of Outputs: 1
- Voltage - Input: 85 ~ 264 VAC
- Voltage - Output 1: 24V
- Voltage - Output 2: -
- Voltage - Output 3: -
- Voltage - Output 4: -
- Voltage - Output 5: -
- Voltage - Output 6: -
- Current - Output 1: 1.7 A
- Current - Output 2: -
- Current - Output 3: -
- Current - Output 4: -
- Current - Output 5: -
- Current - Output 6: -
- Power (Watts): 40W
- Applications: ITE (Commercial)
- Voltage - Isolation: 3 kV
- Efficiency: 80%
- Operating Temperature: -10°C ~ 60°C (With Derating)
- Features: Adjustable Output, Universal Input
- Mounting Type: Chassis Mount
- Size / Dimension: 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm)
- Approval Agency: TUV, UR
- Standard Number: -
