AYF312515
Panasonic Electric Works
Panasonic Electric Works

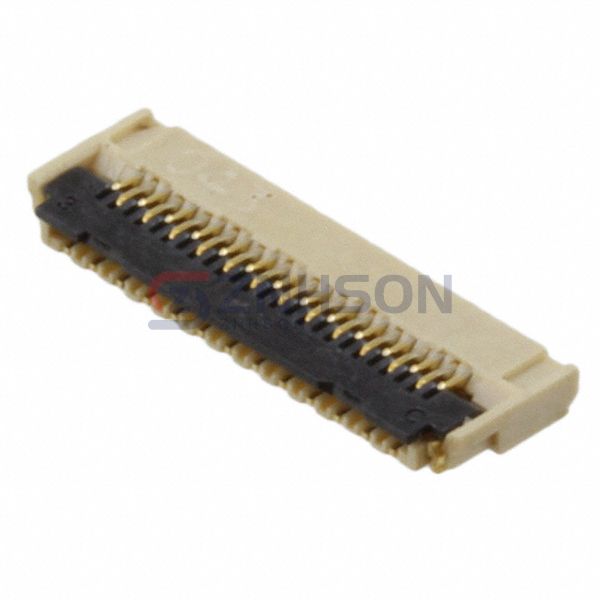

CONN FPC BOTTOM 25POS 0.30MM R/A
$1.62
Available to order
Reference Price (USD)
1+
$1.62000
500+
$1.6038
1000+
$1.5876
1500+
$1.5714
2000+
$1.5552
2500+
$1.539
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Revolutionize your interconnections with Panasonic Electric Works's AYF312515 FFC/FPC Connectors, built for the challenges of tomorrow's electronics. These connectors excel in high-flex applications with a minimum 10,000-cycle durability rating and anti-mismating keying options. The AYF312515 is a favorite in satellite modules, electric vehicle charging stations, and industrial HMI panels due to its rugged construction. Panasonic Electric Works incorporates advanced materials like LCP insulators for thermal stability. With customizable cable lengths and polarization options, AYF312515 adapts to your exact specifications a true partner in innovation.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 25
- Pitch: 0.012" (0.30mm)
- Termination: Solder
- FFC, FCB Thickness: 0.20mm
- Height Above Board: 0.035" (0.88mm)
- Locking Feature: Flip Lock
- Cable End Type: Tabbed
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Liquid Crystal Polymer (LCP)
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -55°C ~ 85°C
- Material Flammability Rating: UL94 V-0
