B07B-PASK(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.

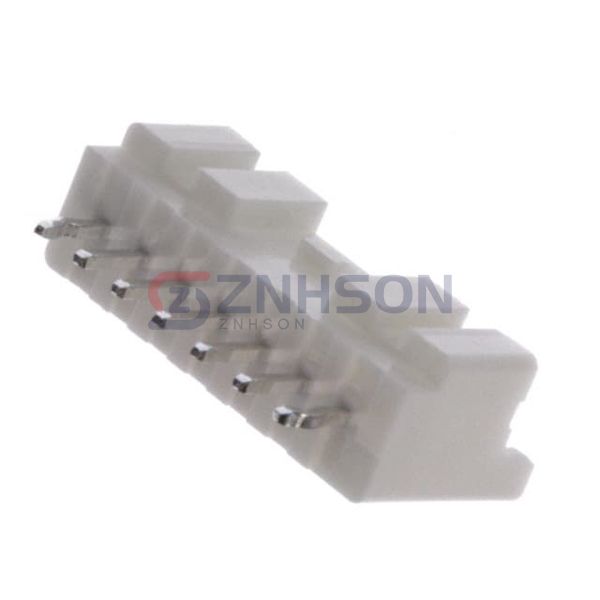

CONN HEADER VERT 7POS 2MM
$0.47
Available to order
Reference Price (USD)
1+
$0.46000
10+
$0.43000
100+
$0.32940
500+
$0.28640
1,000+
$0.23628
5,000+
$0.20764
10,000+
$0.19332
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the B07B-PASK(LF)(SN) rectangular connector header from JST Sales America Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. JST Sales America Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.126" (3.20mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.319" (8.10mm)
- Insulation Height: 0.303" (7.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 3A
- Voltage Rating: 250V
