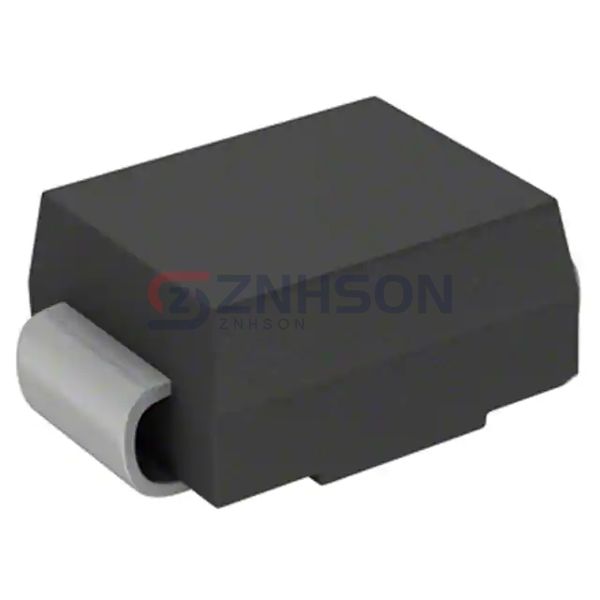

B120AE-13
Diodes Incorporated
Diodes Incorporated
DIODE SCHOTTKY 20V 1A SMA
$0.00
Available to order
Reference Price (USD)
5,000+
$0.05742
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit performance with the B120AE-13 single rectifier diode from Diodes Incorporated. This Discrete Semiconductor Product is engineered for precision and efficiency, offering low forward voltage and high surge tolerance. Ideal for rectification in power adapters, welding equipment, and UPS systems, the B120AE-13 delivers consistent results under heavy loads. Its applications extend to aerospace and defense systems, where reliability cannot be compromised. Diodes Incorporated's B120AE-13 is the go-to choice for engineers seeking robust and high-performing rectifier diodes.
Specifications
- Product Status: Obsolete
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 500 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 100 µA @ 20 V
- Capacitance @ Vr, F: 50pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-214AC, SMA
- Supplier Device Package: SMA
- Operating Temperature - Junction: -55°C ~ 150°C
Related Products
Diodes Incorporated
S3G-13
Taiwan Semiconductor Corporation
ES3GBHR5G
Microsemi Corporation
APT10SCD65K
Vishay General Semiconductor - Diodes Division
1N4937-E3/73
Powerex Inc.
QRS1220T30
STMicroelectronics
STTH3L06B-TR
onsemi
MBR2515L
Vishay General Semiconductor - Diodes Division
BYD13KGP-E3/54
NXP USA Inc.

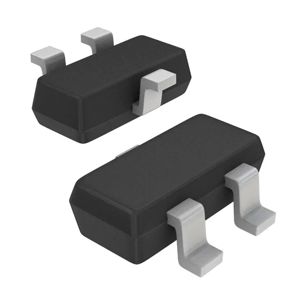

BAT721C/ZLR
