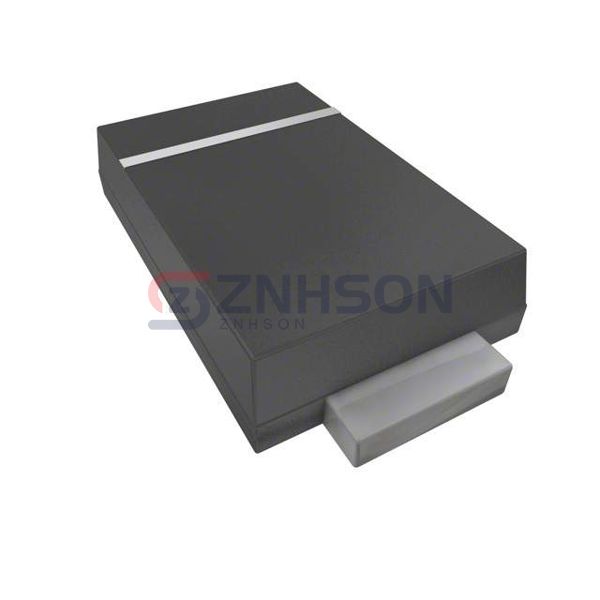

B120AF-13
Diodes Incorporated
Diodes Incorporated
DIODE SCHOTTKY 20V 1A SMAF
$0.36
Available to order
Reference Price (USD)
10,000+
$0.05491
30,000+
$0.05202
50,000+
$0.04913
100,000+
$0.04624
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The B120AF-13 by Diodes Incorporated is a top-tier single rectifier diode designed for high-efficiency power conversion. Belonging to the Diodes - Rectifiers - Single category, it features ultra-fast recovery times and minimal power dissipation, making it perfect for switch-mode power supplies and DC-DC converters. Its versatile applications span industrial motor drives, solar inverters, and consumer electronics, where consistent performance is essential. Engineered for durability, the B120AF-13 ensures long-term reliability even in harsh operating conditions. Trust Diodes Incorporated for cutting-edge semiconductor solutions that drive innovation.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 1A
- Voltage - Forward (Vf) (Max) @ If: 500 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 100 µA @ 20 V
- Capacitance @ Vr, F: 50pF @ 4V, 1MHz
- Mounting Type: Surface Mount
- Package / Case: DO-221AC, SMA Flat Leads
- Supplier Device Package: SMAF
- Operating Temperature - Junction: -55°C ~ 150°C
