B13B-PH-K-S(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.

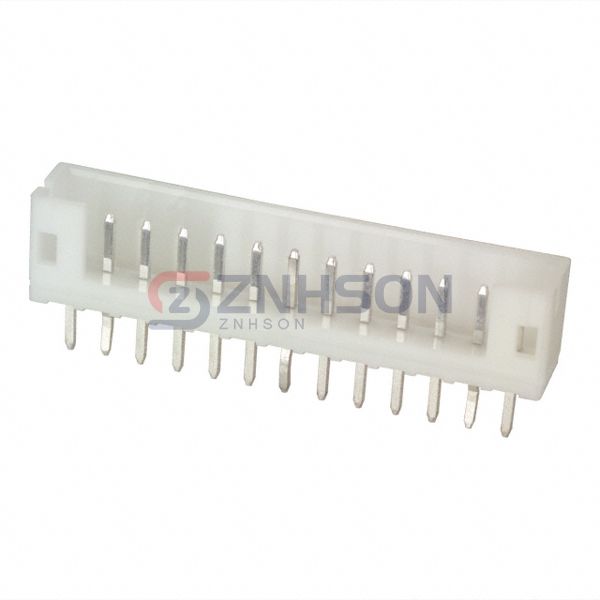

CONN HEADER VERT 13POS 2MM
$0.59
Available to order
Reference Price (USD)
1+
$0.59000
10+
$0.54900
100+
$0.42060
500+
$0.36574
1,000+
$0.30173
5,000+
$0.26516
10,000+
$0.24687
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the B13B-PH-K-S(LF)(SN) rectangular connector header from JST Sales America Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. JST Sales America Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.130" (3.30mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: 0.333" (8.45mm)
- Insulation Height: 0.236" (6.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 100V
