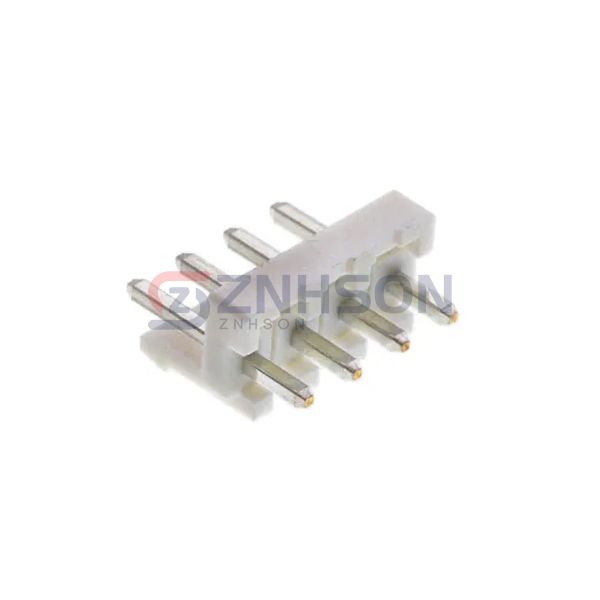

B4P-VH-B(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER VERT 4POS 3.96MM
$0.32
Available to order
Reference Price (USD)
1+
$0.32000
10+
$0.30300
100+
$0.21240
500+
$0.18202
1,000+
$0.15169
5,000+
$0.13002
10,000+
$0.12135
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The B4P-VH-B(LF)(SN) by JST Sales America Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JST Sales America Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.146" (3.70mm)
- Overall Contact Length: 0.575" (14.60mm)
- Insulation Height: 0.370" (9.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 10A
- Voltage Rating: 250V
