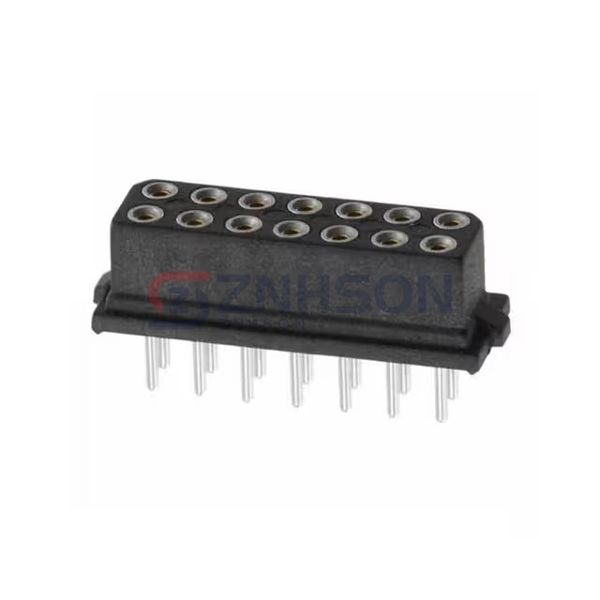

B5741-214-F-T-0
Harwin Inc.
Harwin Inc.
7+7 POS. FEMALE DIL VERTICAL THR
$9.55
Available to order
Reference Price (USD)
1+
$9.55411
500+
$9.4585689
1000+
$9.3630278
1500+
$9.2674867
2000+
$9.1719456
2500+
$9.0764045
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your electronic assemblies with B5741-214-F-T-0 Harwin Inc. Rectangular Connectors - Headers, Receptacles, and Female Sockets. These connectors provide secure, high-density connections for compact devices and complex systems. With options for surface mount, through-hole, and press-fit terminations, they cater to diverse design requirements. Ideal for wearable technology, test & measurement instruments, and LED lighting, Harwin Inc. connectors deliver consistent quality. Applications include fitness trackers, oscilloscopes, and architectural lighting systems.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 14
- Number of Positions Loaded: All
- Pitch - Mating: 0.079" (2.00mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 12.0µin (0.30µm)
- Insulation Color: Black
- Insulation Height: 0.202" (5.14mm)
- Contact Length - Post: 0.118" (3.00mm)
- Operating Temperature: -55°C ~ 125°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin-Lead
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: -
- Current Rating (Amps): 2.2A
- Voltage Rating: 800VAC/DC
