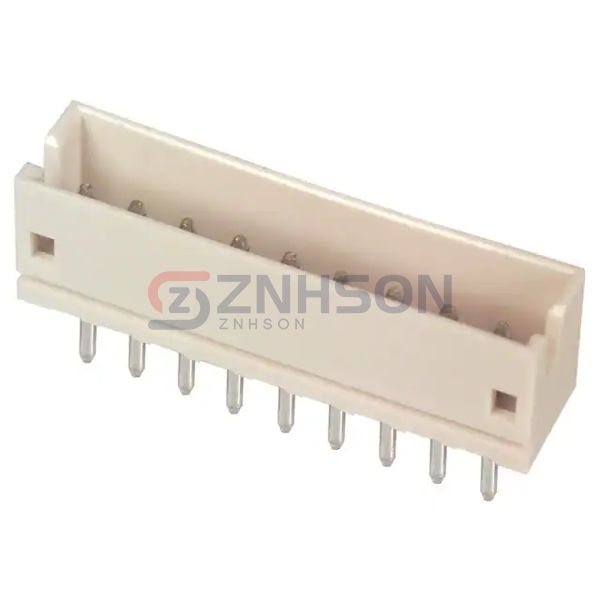

B9B-ZR(LF)(SN)
JST Sales America Inc.
JST Sales America Inc.
CONN HEADER VERT 9POS 1.5MM
$0.44
Available to order
Reference Price (USD)
1+
$0.43000
10+
$0.40400
100+
$0.28260
500+
$0.24226
1,000+
$0.20189
5,000+
$0.17305
10,000+
$0.16151
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The B9B-ZR(LF)(SN) by JST Sales America Inc. is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. JST Sales America Inc. delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: 0.106" (2.69mm)
- Overall Contact Length: 0.256" (6.50mm)
- Insulation Height: 0.177" (4.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: -
- Operating Temperature: -25°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A
- Voltage Rating: 50V
Related Products
Samtec Inc.
FTM-120-02-F-DV-S
Samtec Inc.
TSW-109-08-T-D
Hirose Electric Co Ltd
DF1B-14P-2.5DSA(01)
Sullins Connector Solutions
PREC017SABN-RC
Hirose Electric Co Ltd
A3-10PA-2SV(71)
Amphenol ICC (FCI)
95293-101A04LF
Mill-Max Manufacturing Corp.
800-10-012-10-001000
Samtec Inc.

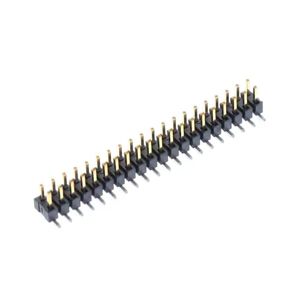

TMMH-120-01-F-DV
