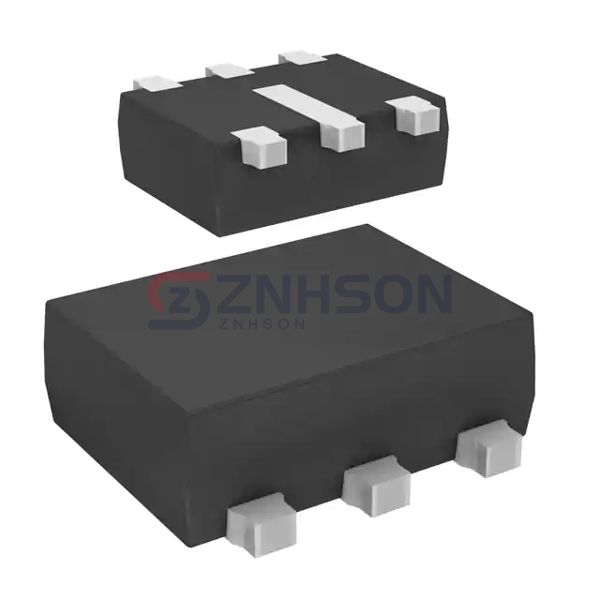

BAS70-09P6FILM
STMicroelectronics
STMicroelectronics
DIODE ARRAY SCHOTTKY 70V SOT666
$0.39
Available to order
Reference Price (USD)
1+
$0.39000
500+
$0.3861
1000+
$0.3822
1500+
$0.3783
2000+
$0.3744
2500+
$0.3705
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the BAS70-09P6FILM diode rectifier array by STMicroelectronics, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. STMicroelectronics delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Obsolete
- Diode Configuration: 2 Independent
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 70 V
- Current - Average Rectified (Io) (per Diode): 70mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 15 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 10 µA @ 70 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-666
