BAT120S,115
Nexperia USA Inc.
Nexperia USA Inc.

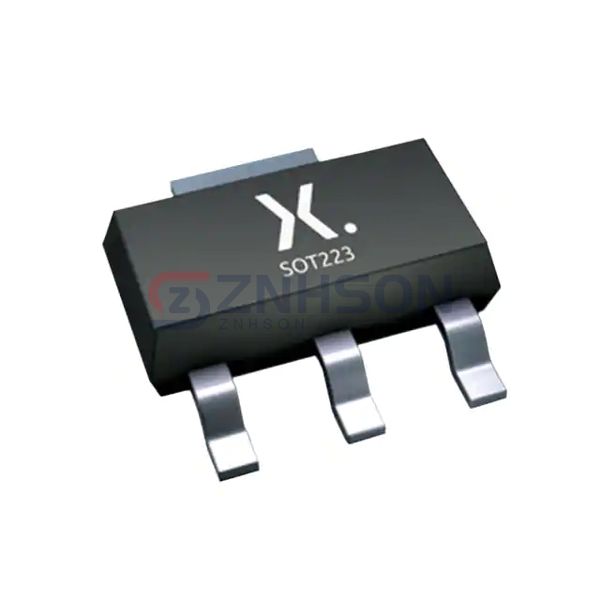

DIODE ARRAY SCHOTTKY 25V SOT223
$0.70
Available to order
Reference Price (USD)
1,000+
$0.27750
2,000+
$0.25500
5,000+
$0.24750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT120S,115 from Nexperia USA Inc. sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. Nexperia USA Inc.'s rigorous quality control ensures the BAT120S,115 maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 25 V
- Current - Average Rectified (Io) (per Diode): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 450 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1 mA @ 25 V
- Operating Temperature - Junction: 125°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-261-4, TO-261AA
- Supplier Device Package: SOT-223
