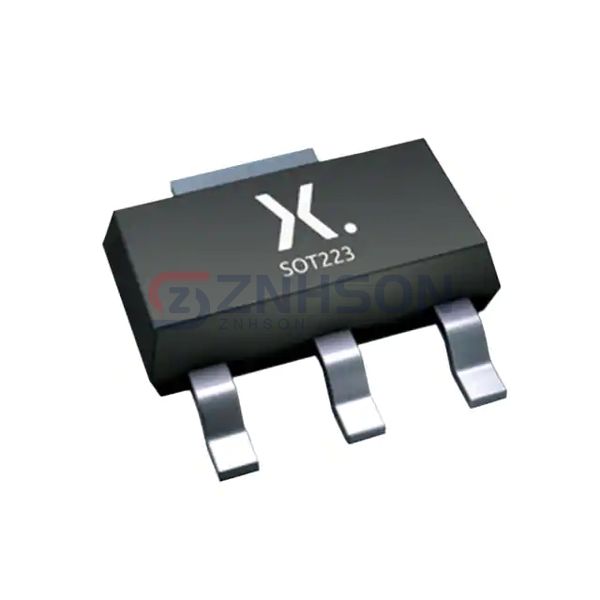

BAT160A,115
Nexperia USA Inc.
Nexperia USA Inc.
DIODE ARRAY SCHOTTKY 60V SOT223
$0.70
Available to order
Reference Price (USD)
1,000+
$0.27750
2,000+
$0.25500
5,000+
$0.24750
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT160A,115 from Nexperia USA Inc. is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Nexperia USA Inc.'s BAT160A,115 for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 60 V
- Current - Average Rectified (Io) (per Diode): 1A (DC)
- Voltage - Forward (Vf) (Max) @ If: 650 mV @ 1 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 350 µA @ 60 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-261-4, TO-261AA
- Supplier Device Package: SOT-223
Related Products
Diodes Incorporated
SBR20A60CTFP
Infineon Technologies
BAW101E6433HTMA1
Vishay General Semiconductor - Diodes Division
VB60100C-M3/4W
SMC Diode Solutions
83CNQ080
Vishay General Semiconductor - Diodes Division
V30120CI-M3/P
onsemi
BAV99LT3G
Taiwan Semiconductor Corporation
BAS21C RFG
Panjit International Inc.
MBR10H150FCT_T0_00001
STMicroelectronics
STPS1545CGY-TR

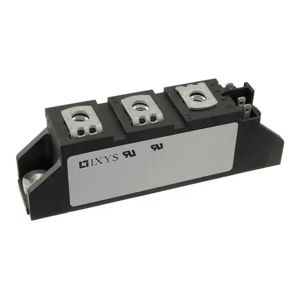

IXYS
