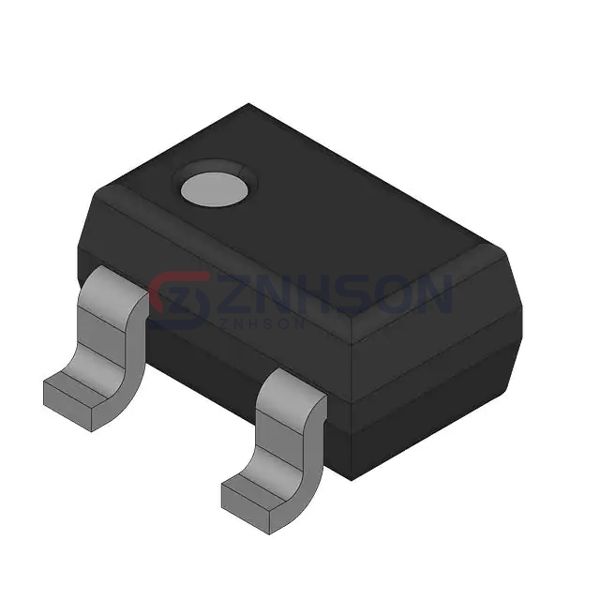

BAT54AWT3
onsemi
onsemi
RECTIFIER DIODE, SCHOTTKY
$0.06
Available to order
Reference Price (USD)
1+
$0.06000
500+
$0.0594
1000+
$0.0588
1500+
$0.0582
2000+
$0.0576
2500+
$0.057
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, onsemi's BAT54AWT3 represents the next generation of rectifier diode arrays. This Discrete Semiconductor Product features innovative passivation layers that enhance reliability in humid conditions. Its primary applications include marine electronics, oil drilling equipment, and military power systems where corrosion resistance is paramount. With onsemi's proprietary screening processes, the BAT54AWT3 guarantees exceptional performance in the most challenging electrical environments.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
