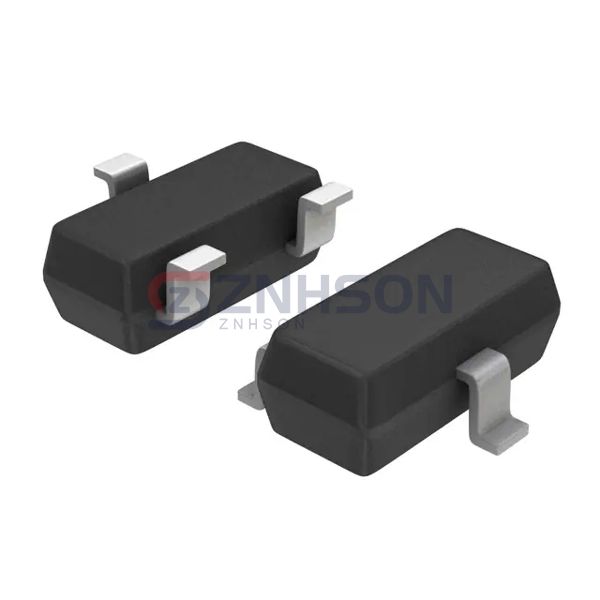

BAT54CLT1G
onsemi
onsemi
DIODE ARRAY SCHOTTKY 30V SOT23-3
$0.17
Available to order
Reference Price (USD)
1+
$0.17000
500+
$0.1683
1000+
$0.1666
1500+
$0.1649
2000+
$0.1632
2500+
$0.1615
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT54CLT1G rectifier array from onsemi redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. onsemi's precision manufacturing ensures each BAT54CLT1G meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
Related Products
SMC Diode Solutions
200CNQ040
SanRex Corporation
DKA60KB80
Vishay General Semiconductor - Diodes Division
VI20M120C-M3/4W
Vishay General Semiconductor - Diodes Division
VF30200C-E3/4W
GeneSiC Semiconductor
MSRT150140AD
Infineon Technologies
BAS7007E6433HTMA1
Nexperia USA Inc.
BAS28,215
Panjit International Inc.
SBM1045VCT_T0_00001
Global Power Technology-GPT
G3S06504B

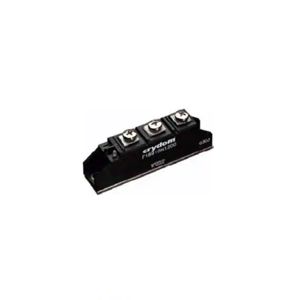

Sensata-Crydom
