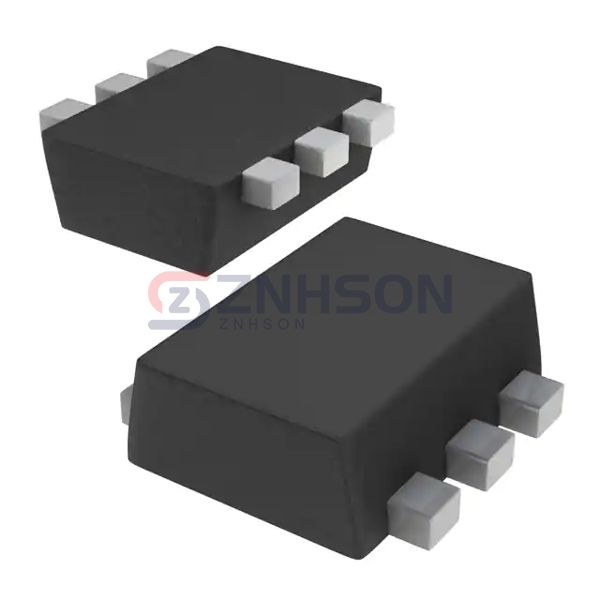

BAT54CV,115
Nexperia USA Inc.
Nexperia USA Inc.
DIODE ARRAY SCHOTTKY 30V SOT666
$0.53
Available to order
Reference Price (USD)
4,000+
$0.07840
8,000+
$0.07056
12,000+
$0.06272
28,000+
$0.05880
100,000+
$0.05488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAT54CV,115 from Nexperia USA Inc. is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Nexperia USA Inc.'s BAT54CV,115 for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Not For New Designs
- Diode Configuration: 2 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: 125°C (Max)
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-666
