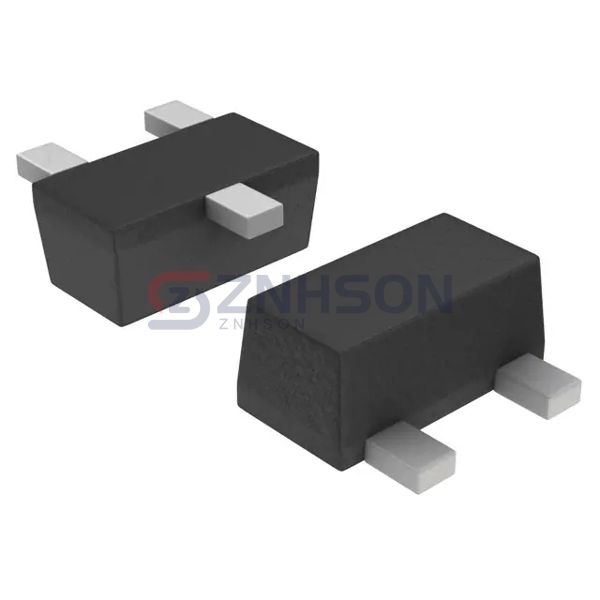

BAT54CXV3T1G
onsemi
onsemi
DIODE ARRAY SCHOTTKY 30V SC89-3
$0.48
Available to order
Reference Price (USD)
3,000+
$0.13676
6,000+
$0.12890
15,000+
$0.12104
30,000+
$0.11711
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the high-performance BAT54CXV3T1G from onsemi, a premium diode rectifier array designed for efficient power conversion in demanding applications. As part of the Discrete Semiconductor Products category, this diode array ensures reliable rectification with low forward voltage drop and high surge current capability. Ideal for power supplies, motor controls, and inverters, the BAT54CXV3T1G delivers exceptional durability and thermal performance. Whether you're designing industrial equipment or automotive electronics, trust onsemi's cutting-edge technology for superior efficiency and longevity.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -55°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: SC-89, SOT-490
- Supplier Device Package: SC-89-3
