BAT54SFILM
STMicroelectronics
STMicroelectronics
DIODE ARRAY SCHOTTKY 40V SOT23-3
$0.37
Available to order
Reference Price (USD)
3,000+
$0.07227
6,000+
$0.06567
15,000+
$0.05907
30,000+
$0.05577
75,000+
$0.05247
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the BAT54SFILM diode rectifier array by STMicroelectronics, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. STMicroelectronics delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io) (per Diode): 300mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 900 mV @ 100 mA
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 30 V
- Operating Temperature - Junction: -40°C ~ 150°C
- Mounting Type: Surface Mount

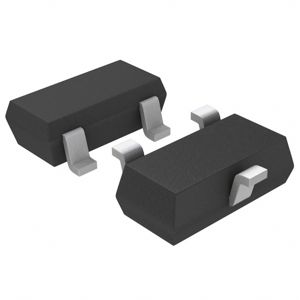

- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
Related Products
Taiwan Semiconductor Corporation
MBR20H100CT
Microchip Technology
APT2X101D100J
onsemi
NTSV20120CTG
SMC Diode Solutions
SDUR3060WT
GeneSiC Semiconductor
MSRT20060AD
Vishay General Semiconductor - Diodes Division
VS-25CTQ045S-M3
Panjit International Inc.
ED602CS_S2_00001
SMC Diode Solutions

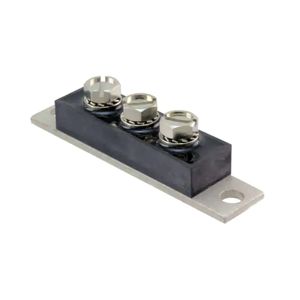

403CMQ100
Diodes Incorporated

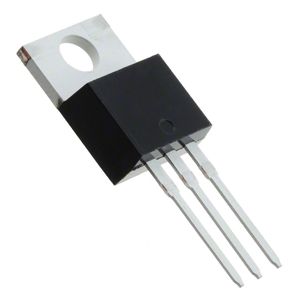

SDT30100GCTFP
