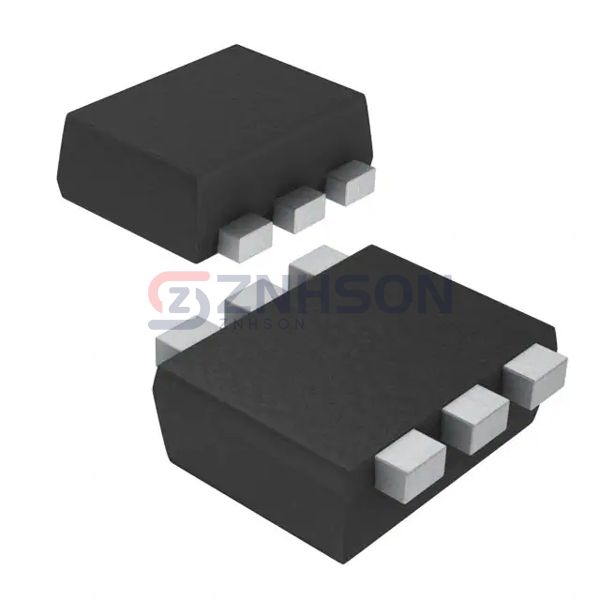

BAT54V-TP
Micro Commercial Co
Micro Commercial Co
DIODE ARRAY SCHOTTKY 30V SOT563
$0.35
Available to order
Reference Price (USD)
3,000+
$0.07140
6,000+
$0.06300
15,000+
$0.05460
30,000+
$0.05180
75,000+
$0.04900
150,000+
$0.04620
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the BAT54V-TP diode rectifier array by Micro Commercial Co, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Micro Commercial Co delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1 V @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
