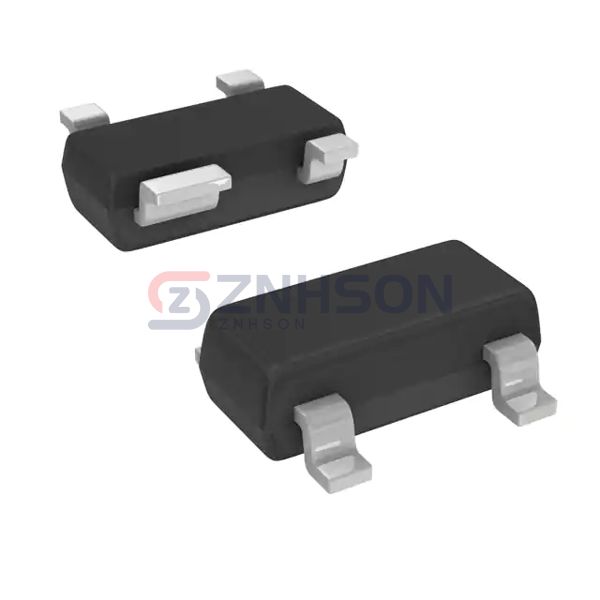

BAT74,235
Nexperia USA Inc.
Nexperia USA Inc.
DIODE ARRAY SCHOTTKY 30V SOT143B
$0.06
Available to order
Reference Price (USD)
10,000+
$0.06179
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the BAT74,235 by Nexperia USA Inc. represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Nexperia USA Inc.'s patented junction design, the BAT74,235 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 2 Independent
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 30 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 5 ns
- Current - Reverse Leakage @ Vr: 2 µA @ 25 V
- Operating Temperature - Junction: 125°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-253-4, TO-253AA
- Supplier Device Package: SOT-143B
