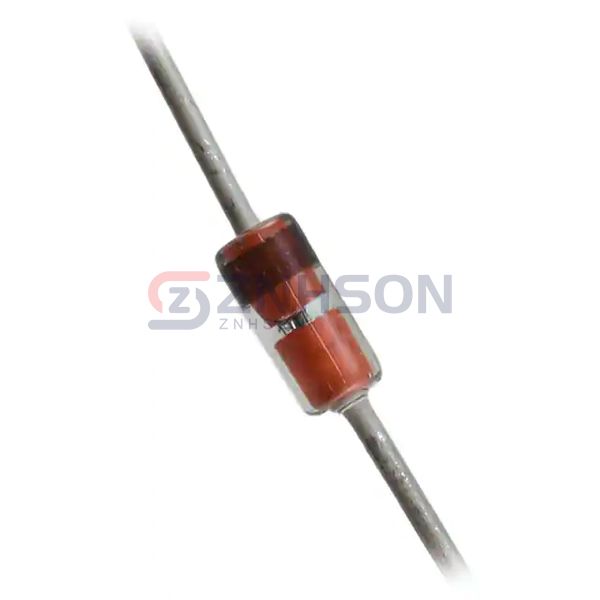

BAV20
Fairchild Semiconductor
Fairchild Semiconductor
RECTIFIER DIODE
$0.02
Available to order
Reference Price (USD)
1+
$0.02000
500+
$0.0198
1000+
$0.0196
1500+
$0.0194
2000+
$0.0192
2500+
$0.019
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the BAV20 single rectifier diode by Fairchild Semiconductor, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The BAV20 is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Fairchild Semiconductor's BAV20 for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Obsolete
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 200 V
- Current - Average Rectified (Io): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 200 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 50 ns
- Current - Reverse Leakage @ Vr: 100 nA @ 200 V
- Capacitance @ Vr, F: 5pF @ 0V, 1MHz
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35 (DO-204AH)
- Operating Temperature - Junction: 175°C (Max)
