BAV70-ON
onsemi
onsemi
RECTIFIER DIODE, 2 ELEMENT, 0.2A
$0.03
Available to order
Reference Price (USD)
1+
$0.03000
500+
$0.0297
1000+
$0.0294
1500+
$0.0291
2000+
$0.0288
2500+
$0.0285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAV70-ON from onsemi sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. onsemi's rigorous quality control ensures the BAV70-ON maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 70 V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 6 ns
- Current - Reverse Leakage @ Vr: 5 µA @ 70 V
- Operating Temperature - Junction: 150°C
- Mounting Type: Surface Mount

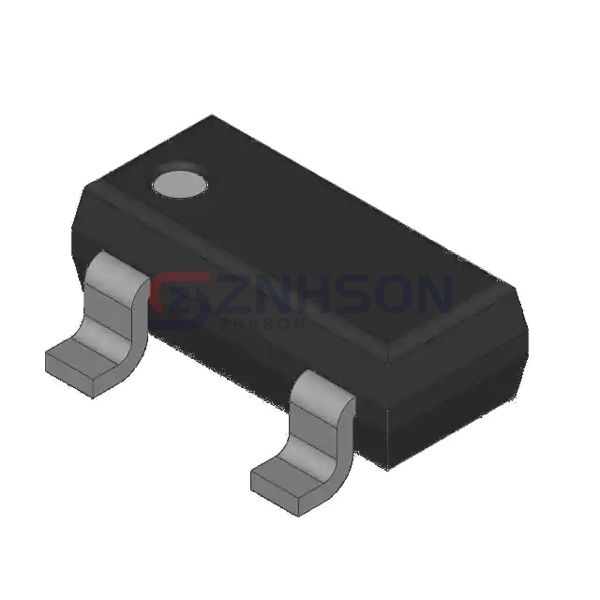

- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
