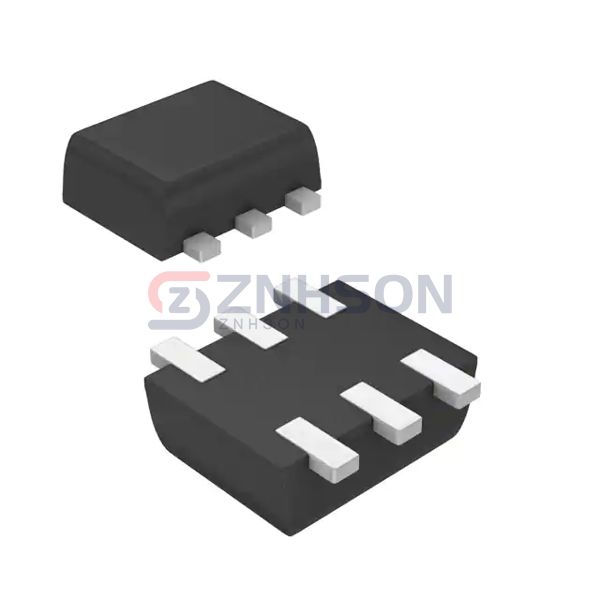

BAV70DV-7
Diodes Incorporated
Diodes Incorporated
DIODE ARRAY GP 75V 150MA SOT563
$0.42
Available to order
Reference Price (USD)
3,000+
$0.11563
6,000+
$0.10938
15,000+
$0.10313
30,000+
$0.10000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAV70DV-7 rectifier array from Diodes Incorporated redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. Diodes Incorporated's precision manufacturing ensures each BAV70DV-7 meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 2 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io) (per Diode): 150mA
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 75 V
- Operating Temperature - Junction: -65°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SOT-563, SOT-666
- Supplier Device Package: SOT-563
