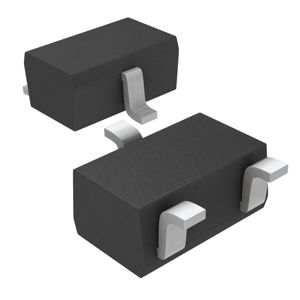

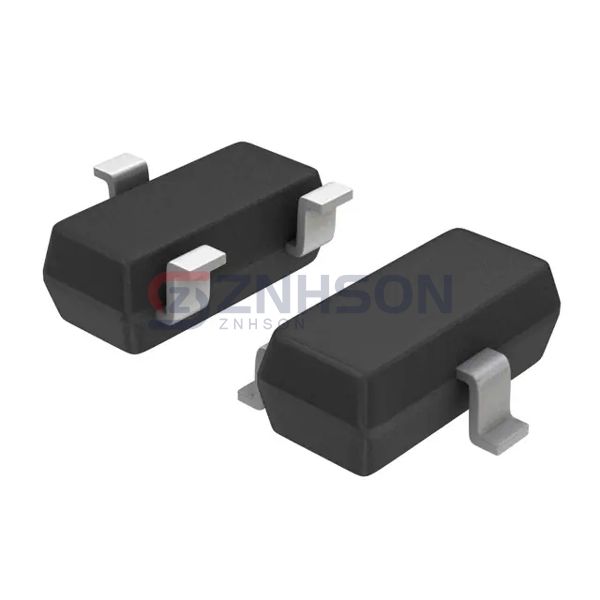

BAV70LT1G
onsemi
onsemi
DIODE ARRAY GP 100V 200MA SOT23
$0.16
Available to order
Reference Price (USD)
3,000+
$0.01875
6,000+
$0.01697
15,000+
$0.01484
30,000+
$0.01342
75,000+
$0.01200
150,000+
$0.01058
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the BAV70LT1G by onsemi represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With onsemi's patented junction design, the BAV70LT1G achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 100 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 6 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 70 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3 (TO-236)
