BAV70W-AQ
Diotec Semiconductor
Diotec Semiconductor
Small SD, 75V, 0.17A, 4ns
$0.17
Available to order
Reference Price (USD)
1+
$0.17367
500+
$0.1719333
1000+
$0.1701966
1500+
$0.1684599
2000+
$0.1667232
2500+
$0.1649865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the BAV70W-AQ by Diotec Semiconductor represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Diotec Semiconductor's patented junction design, the BAV70W-AQ achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io) (per Diode): 175mA
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 75 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount

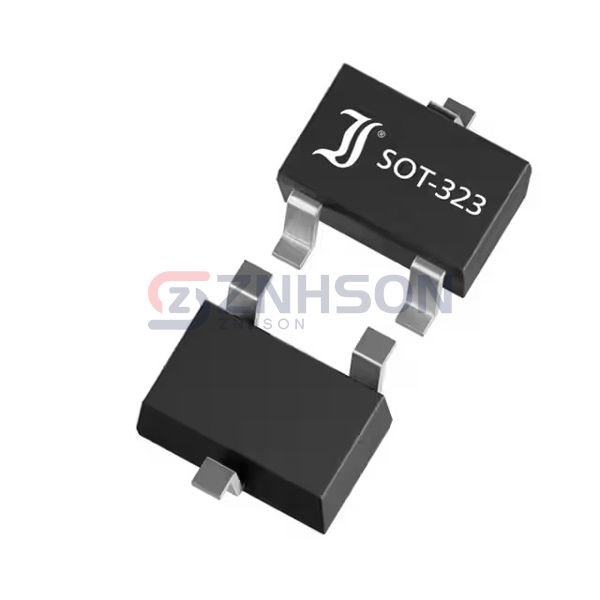

- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
