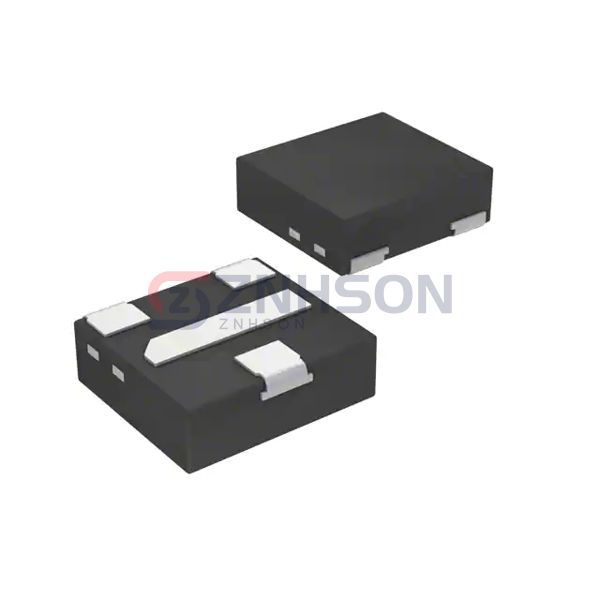

BAV99QAZ
Nexperia USA Inc.
Nexperia USA Inc.
DIODE HS SW 90V 170MA SOT1215
$0.34
Available to order
Reference Price (USD)
5,000+
$0.04500
10,000+
$0.03900
25,000+
$0.03700
50,000+
$0.03500
125,000+
$0.03300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAV99QAZ from Nexperia USA Inc. sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. Nexperia USA Inc.'s rigorous quality control ensures the BAV99QAZ maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Series Connection
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 90 V
- Current - Average Rectified (Io) (per Diode): 170mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 500 nA @ 80 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1010D-3
