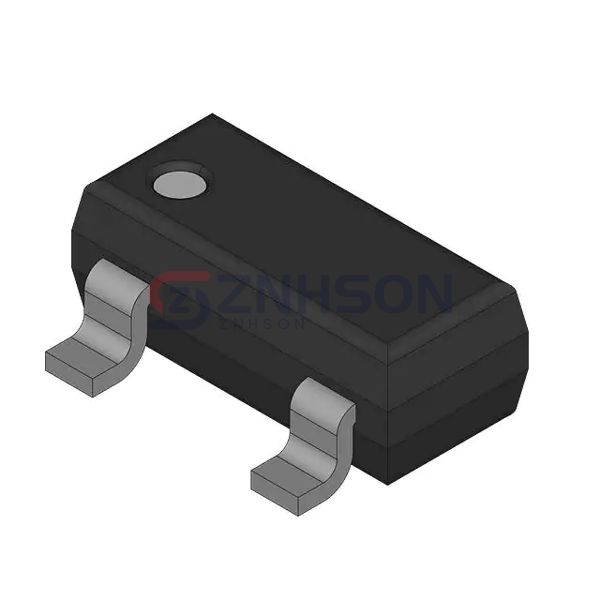

BAW56
Fairchild Semiconductor
Fairchild Semiconductor
HIGH-SPEED SWITCHING DIODES
$0.03
Available to order
Reference Price (USD)
1+
$0.03000
500+
$0.0297
1000+
$0.0294
1500+
$0.0291
2000+
$0.0288
2500+
$0.0285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the BAW56 diode rectifier array by Fairchild Semiconductor, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Fairchild Semiconductor delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 85 V
- Current - Average Rectified (Io) (per Diode): 200mA
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 6 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 70 V
- Operating Temperature - Junction: 150°C
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: SOT-23-3
