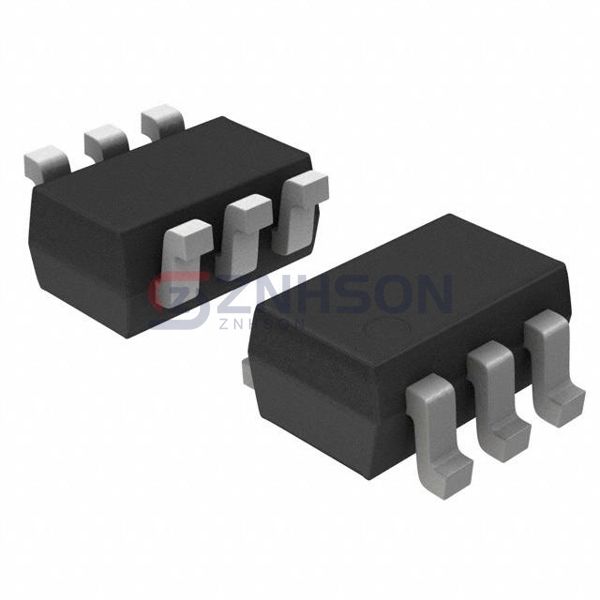

BAW56DW-TP
Micro Commercial Co
Micro Commercial Co
DIODE ARRAY GP 75V 150MA SOT363
$0.45
Available to order
Reference Price (USD)
3,000+
$0.08550
6,000+
$0.07790
15,000+
$0.07030
30,000+
$0.06650
75,000+
$0.06270
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the BAW56DW-TP diode rectifier array by Micro Commercial Co, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Micro Commercial Co delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 2 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io) (per Diode): 150mA
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 75 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: 6-TSSOP, SC-88, SOT-363
- Supplier Device Package: SOT-363
