BAW56E6433
Infineon Technologies
Infineon Technologies
HIGH SPEED SWITCHING DIODE
$0.02
Available to order
Reference Price (USD)
1+
$0.02000
500+
$0.0198
1000+
$0.0196
1500+
$0.0194
2000+
$0.0192
2500+
$0.019
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
For engineers specializing in power electronics, the BAW56E6433 by Infineon Technologies represents the pinnacle of rectifier diode array technology. Part of the essential Discrete Semiconductor Products lineup, this device features parallel diode configurations for increased current handling. Its applications span photovoltaic systems, UPS backups, and industrial automation controls. With Infineon Technologies's patented junction design, the BAW56E6433 achieves superior heat dissipation and long-term stability under continuous load.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 150 nA @ 70 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: TO-236-3, SC-59, SOT-23-3
- Supplier Device Package: PG-SOT23
Related Products
Vishay General Semiconductor - Diodes Division
VS-RA220FA120
Diodes Incorporated
BAT54A-7-F
onsemi
MBR20L45CTG
Panjit International Inc.
BAW56E6_R1_00001
SMC Diode Solutions
62CNQ030SL
Infineon Technologies

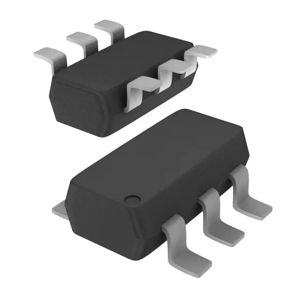

BAW56UE6327HTSA1
Diodes Incorporated
BAW101S-7
Renesas Electronics America Inc

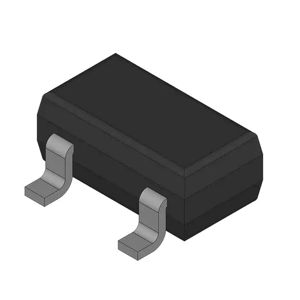

HSM88WATL-E
