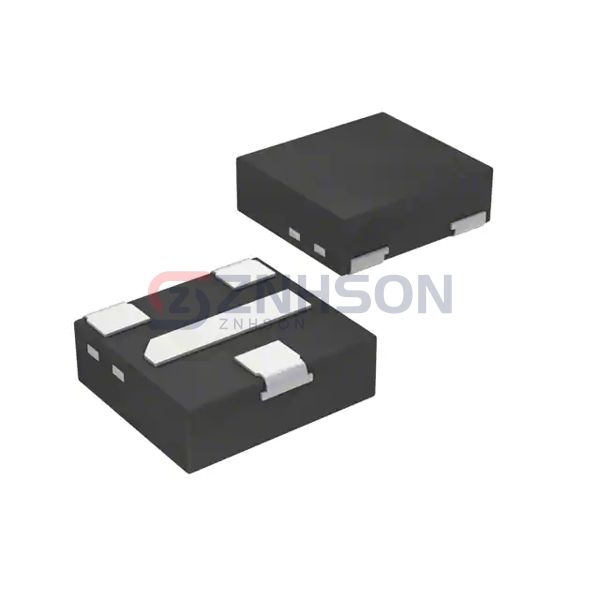

BAW56QAZ
Nexperia USA Inc.
Nexperia USA Inc.
DIODE HS SW 90V 180MA SOT1215
$0.30
Available to order
Reference Price (USD)
5,000+
$0.03960
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAW56QAZ from Nexperia USA Inc. is a standout in the Discrete Semiconductor Products family, offering unmatched rectification efficiency in compact diode arrays. Designed for high-density PCB layouts, this product excels in bridge rectifiers and polarity protection circuits. Its low leakage current and high-temperature stability make it a favorite for telecommunications, consumer electronics, and medical devices. Choose Nexperia USA Inc.'s BAW56QAZ for applications where space-saving design meets industrial-grade reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 90 V
- Current - Average Rectified (Io) (per Diode): 180mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 500 nA @ 80 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount
- Package / Case: 3-XDFN Exposed Pad
- Supplier Device Package: DFN1010D-3
