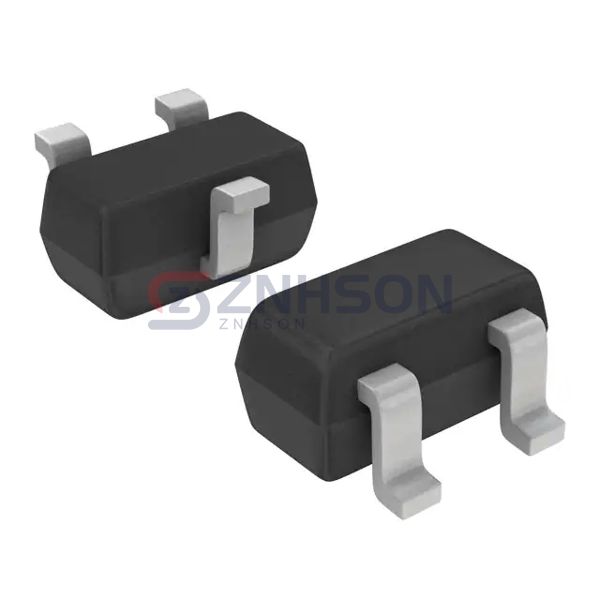

BAW56TT1
onsemi
onsemi
DIODE ARRAY GP 70V 200MA SC75
$0.05
Available to order
Reference Price (USD)
1+
$0.05000
500+
$0.0495
1000+
$0.049
1500+
$0.0485
2000+
$0.048
2500+
$0.0475
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAW56TT1 rectifier array from onsemi redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. onsemi's precision manufacturing ensures each BAW56TT1 meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Obsolete
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 70 V
- Current - Average Rectified (Io) (per Diode): 200mA (DC)
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 6 ns
- Current - Reverse Leakage @ Vr: 2.5 µA @ 70 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-75, SOT-416
- Supplier Device Package: SC-75, SOT-416
