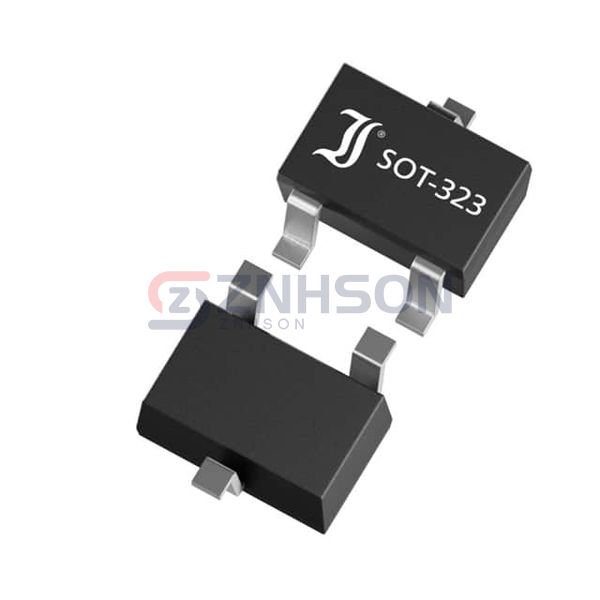

BAW56W
Diotec Semiconductor
Diotec Semiconductor
DIODE SOT-323 85V 0.15A 4NS
$0.10
Available to order
Reference Price (USD)
1+
$0.10167
500+
$0.1006533
1000+
$0.0996366
1500+
$0.0986199
2000+
$0.0976032
2500+
$0.0965865
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BAW56W from Diotec Semiconductor sets new benchmarks in the Discrete Semiconductor Products market. This rectifier array incorporates advanced epitaxial growth technology for superior reverse recovery characteristics. Perfect for high-efficiency adapters, induction heating, and plasma cutting equipment, it offers outstanding thermal cycling performance. Diotec Semiconductor's rigorous quality control ensures the BAW56W maintains consistent parameters across production batches for design-in reliability.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Anode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 75 V
- Current - Average Rectified (Io) (per Diode): 150mA
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 150 mA
- Speed: Small Signal =< 200mA (Io), Any Speed
- Reverse Recovery Time (trr): 4 ns
- Current - Reverse Leakage @ Vr: 1 µA @ 75 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323
