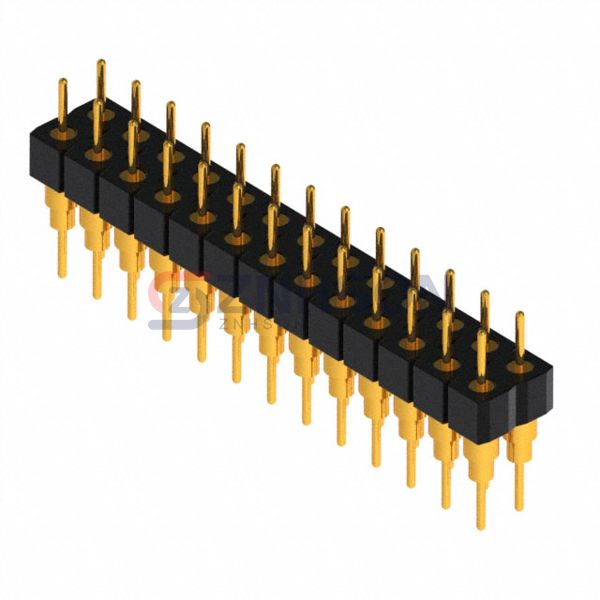

BBD-113-G-A
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 26POS 2.54MM
$15.68
Available to order
Reference Price (USD)
1+
$8.17000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The BBD-113-G-A by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the BBD-113-G-A supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.125" (3.18mm)
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: 0.460" (11.68mm)
- Insulation Height: 0.211" (5.35mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Nickel
- Contact Material: -
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
852-10-040-20-001101
TE Connectivity AMP Connectors
2842139-6
3M
2380-5121TG
Preci-Dip
800-10-019-20-004101
Major League Electronics
TSHS-117-D-08-A-F-LF
Amphenol ICC (FCI)
68498-302
Amphenol ICC (FCI)
57102-F08-08LF
Harwin Inc.
M55-7101642R

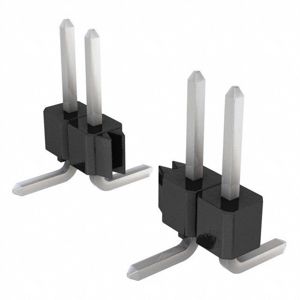

Sullins Connector Solutions
