BC020-20-A-0200-0300-L-G
GCT

GCT
20POS 1.0MM PITCH PIN HEADER, SI
$1.94
Available to order
Reference Price (USD)
1+
$1.94000
500+
$1.9206
1000+
$1.9012
1500+
$1.8818
2000+
$1.8624
2500+
$1.843
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

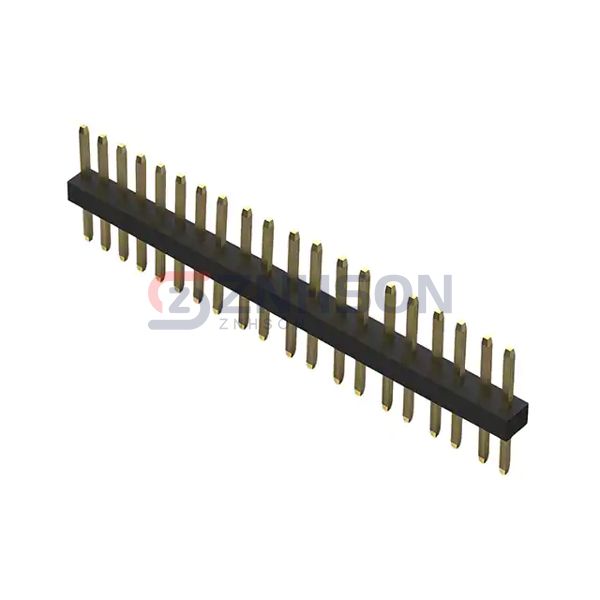

The BC020-20-A-0200-0300-L-G by GCT is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the BC020-20-A-0200-0300-L-G supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. GCT ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 20
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.079" (2.00mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.236" (6.00mm)
- Insulation Height: 0.039" (1.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC/DC
